HC13R5/HC14R5/HC15R5/HC16R5/HC17R5 14引腳DIP封裝HCMOS振蕩器Connor-Winfield

發布時間：2025-07-02 09:10:44 瀏覽：2641

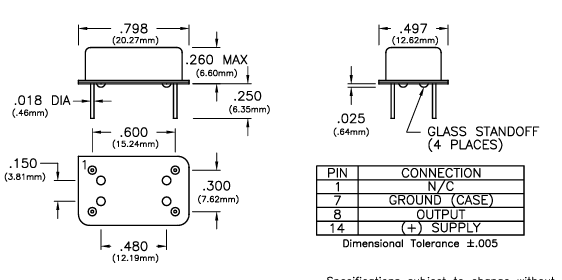

　　Connor-Winfield Corporation公司生產的14引腳DIP封裝HCMOS振蕩器HC13R5/HC14R5/HC15R5/HC16R5/HC17R5，頻率范圍1kHz–70MHz，輸出波形：HCMOS方波，采用全金屬氣密密封焊接封裝，尺寸20.27mm×7.62mm(長×寬)，引腳間距3.81mm。

HC13R5/HC14R5/HC15R5/HC16R5/HC17R5 14引腳DIP封裝HCMOS振蕩器Connor-Winfield

SPECIFICATIONS	HC13R5	HC14R5	HC15R5	HC16R5	HC17R5
Frequency Range	1KHz to 70MHz
Frequency Stability	±25ppm	±50ppm	±100ppm	±100ppm	±100ppm
	(Inclusive of calibration tolerance at 25℃,operating temperoture range, input voltage change,load change,aging,shock and vibration)
Temperature Range	0 to +70℃	0 to +70C	0 to +70℃	-40 to +85C	·-55 to +125℃
Waveform	HCMOS Squarewave
Load	15pF
Voltage Voh	4.5V Minimum
Vol	0.5V Maximum
Output Current loh	-4.0mA
lol	4.0mA
Duty Cycle	40/60 Maximum
Rise/Fall Time	6nS
Start Up Time	10mS Maximum
Supply Voltage	+5Vdc ±5%
Supply Current	30mA Maximum
Package	All metal,hermetically sealed,welded package

型號參數信息：

Part Number	Model Family	Product Type	Package	Frequency Stability	Frequency Tolerance	Supply Voltage	Logic Family	Frequency Range	Temperature Range	Keywords
HC13R5	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 KHz to 70 MHz	0 to 70c	Low Cost
HC13R5A	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	3.3 Vdc	HCMOS	1 KHz to 1 MHz	0 to 70c	N/A
HC13R6	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 Hz to 1 KHz	0 to 70c	N/A
HC13R8	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 to 80 MHz	0 to 70c	Low Cost
HC13R8G	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 to 80 MHz	0 to 70c	N/A
RoHS	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 to 80 MHz	0 to 70c	N/A
HC13R8R	Oscillators	Clock	14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 to 100 MHz	0 to 70c	Low Cost
HC145	Oscillators	Clock	14 Pin DIP	+/-5.0ppm	+/-10ppm	5.0 Vdc	HCMOS	4 to 50 MHz	-10 to 60c	N/A
HC145R	Oscillators	Clock	14 Pin DIP	+/-10ppm	+/-10ppm	5.0 Vdc	HCMOS	4 to 50 MHz	-10 to 60c	N/A
HC14R5	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 KHz to 70 MHz	0 to 70c	N/A
HC14R5A	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	3.3 Vdc	HCMOS	1 KHz to 1 MHz	0 to 70c	N/A
HC14R6	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 Hz to 1 KHz	0 to 70c	N/A
HC14R8	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 to 80 MHz	-25 to 75c	Low Cost
HC14R8G	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 to 80 MHz	-25 to 75c	N/A
RoHS	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 to 80 MHz	-25 to 75c	N/A
HC14R8R	Oscillators	Clock	14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 to 100 MHz	0 to 70c	Low Cost
HC15R5	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 KHz to 70 MHz	0 to 70c	Low Cost
HC15R5A	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	3.3 Vdc	HCMOS	1 KHz to 1 MHz	0 to 70c	N/A
HC15R6	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 Hz to 1 KHz	0 to 70c	N/A
HC15R8	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 80 MHz	0 to 70c	Low Cost
HC15R8G	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 80 MHz	0 to 70c	Low Cost
RoHS	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 80 MHz	0 to 70c	Low Cost
HC15R8R	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 100 MHz	0 to 70c	Low Cost
HC16R5	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 KHz to 70 MHz	-40 to 85c	Low Cost
HC16R6	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 Hz to 1 KHz	-40 to 85c	N/A
HC16R8	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 80 MHz	-40 to 85c	Low Cost
HC16R8G	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 80 MHz	-40 to 85c	N/A
RoHS	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 80 MHz	-40 to 85c	N/A
HC16R8R	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 100 MHz	-40 to 85c	Low Cost
HC17R5	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 KHz to 70 MHz	-55 to 125c	N/A
HC17R5R	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 70 MHz	-55 to 125c	N/A
HC17R5RG	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 70 MHz	-55 to 125c	N/A
RoHS	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 70 MHz	-55 to 125c	N/A
HC17R6	Oscillators	Clock	14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 Hz to 1 KHz	-55 to 125c	N/A
HC1xR8R Series	Oscillators	Clock	14 Pin DIP	+/-20ppm to +/-50ppm	+/-25ppm to +/-100ppm	5.0 Vdc	HCMOS	1 to 100 MHz	0 to 70c	Pure Spectrum
RoHS 5/6	Oscillators	Clock	14 Pin DIP	+/-20ppm to +/-50ppm	+/-25ppm to +/-100ppm	5.0 Vdc	HCMOS	1 to 100 MHz	0 to 70c	Pure Spectrum
JHC13R8R	Oscillators	Clock	SM 14 Pin DIP	+/-20ppm	+/-25ppm	5.0 Vdc	HCMOS	1 to 70 MHz	0 to 70c	N/A
JHC14R8R	Oscillators	Clock	SM 14 Pin DIP	+/-40ppm	+/-50ppm	5.0 Vdc	HCMOS	1 to 70 MHz	0 to 70c	N/A
JHC15R8R	Oscillators	Clock	SM 14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 70 MHz	0 to 70c	Low Cost
JHC15R8RC	Oscillators	Clock	SM 14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 70 MHz	0 to 70c	N/A
JHC16R8R	Oscillators	Clock	SM 14 Pin DIP	+/-100ppm	+/-100ppm	5.0 Vdc	HCMOS	1 to 70 MHz	-40 to 85c	N/A

更多Connor-Winfield晶振產品可咨詢立維創展。
