Murata村田DCDC電源模塊國產替代：Leadway電源模塊的崛起
發布時間：2024-12-17 09:08:25 瀏覽：701
在全球化的電子市場中，Murata村田作為日本著名的電子元件制造商，其DCDC電源模塊因其高性能和可靠性而廣受市場歡迎，但是目前Murata村田電源模塊很多已經停產，而國內電源模塊也在崛起，Leadway電源模塊可成為村田產品的有力替代品，主要有以下幾點優勢：
1.性能高。Leadway電源模塊在輸入電壓、輸出電壓、輸出電流、尺寸、溫度范圍和封裝等方面均與Murata村田電源模塊相匹配，其穩定性、效率、保護功能、可靠性、尺寸和重量等方面均進行了優化。
2.價格優勢。Leadway國產電源模塊在價格上具有明顯優勢，此外，國內供應鏈的完善也有助于降低物流和庫存成本。
3.市場前景。國產電源模塊技術創新可以滿足用戶對高性能、高可靠性和節能環保的需求，推動模塊電源市場的增長。
相關型號參數及替代方案如下：
| Leadway型號 | 可替代Murata村田型號 | Iout(A) | Vin(V) | Vout (V) | 尺寸 | 工作溫度 | 封裝 |

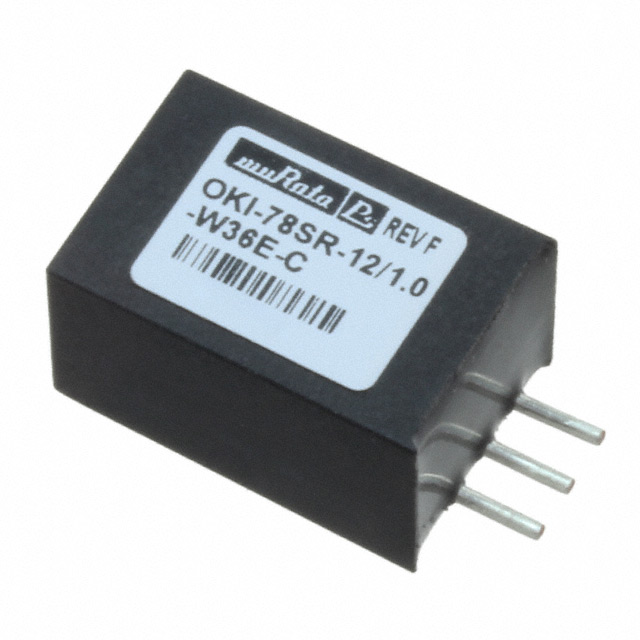

| LWI-78SR-12/1.0-W36-C | OKI-78SR-12/1.0-W36-C | 1A | 15V ~ 36V | 12V | 10.4mm*8.64mm*16.5mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-12/1.0-W36E-C | OKI-78SR-12/1.0-W36E-C | 1A | 15V ~ 36V | 12V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-12/1.0-W36H-C | OKI-78SR-12/1.0-W36H-C | 1A | 15V ~ 36V | 12V | 16.5mm*10.4mm*8.64mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-12/1.0-W36HE-C | OKI-78SR-12/1.0-W36HE-C | 1A | 15V ~ 36V | 12V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36-C | OKI-78SR-3.3/1.5-W36-C | 1.5A | 7V ~ 36V | 3.3V | 10.4mm*8.64mm*16.5mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36E-C | OKI-78SR-3.3/1.5-W36E-C | 1.5A | 7V ~ 36V | 3.3V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36H-C | OKI-78SR-3.3/1.5-W36H-C | 1.5A | 7V ~ 36V | 3.3V | 16.5mm*10.4mm*8.64mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36HE-C | OKI-78SR-3.3/1.5-W36HE-C | 1.5A | 7V ~ 36V | 3.3V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36-C | OKI-78SR-5/1.5-W36-C | 1.5A | 7V ~ 36V | 5V | 10.4mm*8.64mm*16.5mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36E-C | OKI-78SR-5/1.5-W36E-C | 1.5A | 7V ~ 36V | 5V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36H-C | OKI-78SR-5/1.5-W36H-C | 1.5A | 7V ~ 36V | 5V | 16.5mm*10.4mm*8.64mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36HE-C | OKI-78SR-5/1.5-W36HE-C | 1.5A | 7V ~ 36V | 5V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-T/36W-W40N-C | OKI-T/36W-W40N-C | 3A | 19V ~ 40V | 5.021V ~ 15.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/36W-W40P-C | OKI-T/36W-W40P-C | 3A | 19V ~ 40V | 5.021V ~ 15.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W32N-C | OKI-T/3-W32N-C | 3A | 9V ~ 32V | 0.7525V ~ 4.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W32P-C | OKI-T/3-W32P-C | 3A | 9V ~ 32V | 0.7525V ~ 4.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W40N-C | OKI-T/3-W40N-C | 3A | 16V ~ 40V | 0.75V ~ 5.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W40P-C | OKI-T/3-W40P-C | 3A | 16V ~ 40V | 0.75V ~ 5.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W12N2-C | OKL2-T/12-W12N2-C | 12A | 4.5V ~ 14V | 0.69V ~ 5.5V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W12P2-C | OKL2-T/12-W12P2-C | 12A | 4.5V ~ 14V | 0.69V ~ 5.5V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W5N-C | OKL2-T/12-W5N-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W5P-C | OKL2-T/12-W5P-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W12N2-C | OKL2-T/20-W12N2-C | 20A | 4.5V ~ 14V | 0.69V ~ 5.5V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W12P2-C | OKL2-T/20-W12P2-C | 20A | 4.5V ~ 14V | 0.69V ~ 5.5V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W5N-C | OKL2-T/20-W5N-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W5P-C | OKL2-T/20-W5P-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/3-W5N-C | OKL2-T/3-W5N-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/3-W5P-C | OKL2-T/3-W5P-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/6-W5N-C | OKL2-T/6-W5N-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/6-W5P-C | OKL2-T/6-W5P-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/12-W5N-C | OKL-T/12-W5N-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL-T/12-W5P-C | OKL-T/12-W5P-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL-T/1-W12N-C | OKL-T/1-W12N-C | 1A | 2.9V ~ 14V | 0.9V ~ 5.5V | 12.4mm*12.4mm*4.57mm | -40℃ ~ 85℃ | SMD |
| LWL-T/1-W12P-C | OKL-T/1-W12P-C | 1A | 2.9V ~ 14V | 0.9V ~ 5.5V | 12.4mm*12.4mm*4.57mm | -40℃ ~ 85℃ | SMD |
| LWL-T/20-W5N-C | OKL-T/20-W5N-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL-T/20-W5P-C | OKL-T/20-W5P-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL-T/3-W5N-C | OKL-T/3-W5N-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/3-W5P-C | OKL-T/3-W5P-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/6-W5N-C | OKL-T/6-W5N-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/6-W5P-C | OKL-T/6-W5P-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWX2-T/10-D12N-C | OKX2-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/10-D12P-C | OKX2-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/10-W5N-C | OKX2-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/10-W5P-C | OKX2-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-D12N-C | OKX2-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-D12P-C | OKX2-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-W5N-C | OKX2-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-W5P-C | OKX2-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-D12N-C | OKX-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-D12P-C | OKX-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-W5N-C | OKX-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-W5P-C | OKX-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-D12N-C | OKX-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-D12P-C | OKX-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-W5N-C | OKX-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-W5P-C | OKX-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/3-D12N-C | OKX-T/3-D12N-C | 3A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/3-D12P-C | OKX-T/3-D12P-C | 3A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-D12N-C | OKX-T/5-D12N-C | 5A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-D12P-C | OKX-T/5-D12P-C | 5A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-W5N-C | OKX-T/5-W5N-C | 5A | 2.4V ~ 5.5V | 0.7525V ~ 3.6V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-W5P-C | OKX-T/5-W5P-C | 5A | 2.4V ~ 5.5V | 0.7525V ~ 3.6V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWY2-T/10-D12N-C | OKY2-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/10-D12P-C | OKY2-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/10-W5N-C | OKY2-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 35.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/10-W5P-C | OKY2-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 36.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-D12N-C | OKY2-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-D12P-C | OKY2-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-W5N-C | OKY2-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 35.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-W5P-C | OKY2-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 36.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-D12N-C | OKY-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-D12P-C | OKY-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-W5N-C | OKY-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 33.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-W5P-C | OKY-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 34.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-D12N-C | OKY-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-D12P-C | OKY-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-W5N-C | OKY-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 33.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-W5P-C | OKY-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 34.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-D12N-C | OKY-T/3-D12N-C | 3A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-D12P-C | OKY-T/3-D12P-C | 3A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-W5N-C | OKY-T/3-W5N-C | 3A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-W5P-C | OKY-T/3-W5P-C | 3A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-D12N-C | OKY-T/5-D12N-C | 5A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-D12P-C | OKY-T/5-D12P-C | 5A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-W5N-C | OKY-T/5-W5N-C | 5A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-W5P-C | OKY-T/5-W5P-C | 5A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
