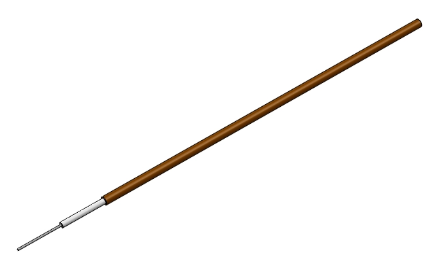

Center Conductor Diameter

0.0056 in

Dielectric Diameter

0.0170  in

Outer Conductor Diameter

0.0230 in

MATERIALS

Center Conductor Material

SPCW

Dielectric Material

PTFE

Outer Conductor Material

Copper-Tin Composite

RoHS Compliant

Yes

MECHANICAL CHARACTERISTICS

Minimum Temperature

?55 °C

Maximum Temperature

+225 °C

Inside Bend Radius (Minimum)

0.100 in

Weight

0.10 lbs per 100 ft

ELECTRICAL CHARACTERISTICS

Nominal Impedance

50.0 ?

Nominal Impedance Margin

±2.0 ?

Velocity of Propagation

76.50%

Shielding Effectiveness

>165 db

Voltage Withstanding

750 VRMS@ 60 Hz

Continuous Working Voltage

300 VRMS max

Maximum Operating Frequency

250 GHz

Attenuation

FREQUENCY

DB / 100 FT TYPICAL

0.5 GHz

46 db

1.0 GHz

65.3 db

5.0 GHz

146.8 db

10.0 GHz

207.8 db

18.0 GHz

280 db

26.5 GHz

340 db

40.0 GHz

419.5 db

50.0 GHz

470 db

65.0 GHz

537 db

90.0 GHz

634 db

Power

FREQUENCY

WATTS CW @ 20 °C (MAX)

0.5 GHz

30W

1.0 GHz

21 W

5.0 GHz

9 W

10.0 GHz

7W

18.0 GHz

3.9 W

26.5 GHz

3.2W

40.0 GHz

2.5 W

50.0 GHz

2.2 W

65.0 GHz

1.9 W

90.0 GHz

1.7 W
