ANDON光電傳感器替代Axcel Photonics

發布時間：2023-06-01 16:59:15 瀏覽：1902

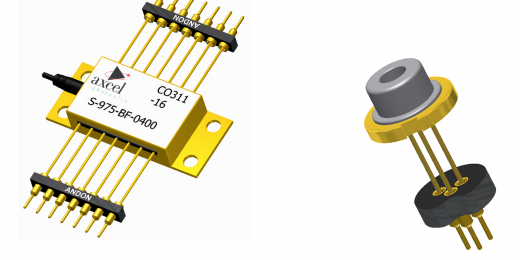

光電傳感器選用ANDON與眾不同的Senstac M接觸點的最大系列穩定性可靠傳感器電源插座。

ANDON光電插座經濟高效率的穩定性可靠電源插座保護、測試、集合和可以替換光電器件。PCB上的焊接電源插座安裝后插入傳感器，清除加工過程中的ESD，清除焊接溫度所造成的受損清洗溶劑所造成的Elmate受損。防止玻璃密封性裂開，盡可能減少引線鍵合的沖擊損害。

ANDON光電傳感器設計和質量都已通過全球范圍內的ISO9001認證，滿足環保RoHS標準要求。主要應用于工業化生產、商業服務、國防軍事、航空航天等領域。

ANDON為全球客戶提供高性能插座產品，如CCD、光電、傳感器、電池等項目所需的插座產品。產品廣泛應用于研發設計、軍用和高溫環境項目。深圳市立維創展科技有限公司，授權代理銷售ANDON產品，歡迎咨詢。

詳情了解ANDON請點擊：/brand/76.html

AXCEL PHOTONICS SOCKETS
Axcel Photonics Model Number	Andon Part Number Replace "XXX" with Terminal Type	Terminal Type		Pin ? [in]	Figure Number	Page Number
Axcel Photonics Model Number	Andon Part Number Replace "XXX" with Terminal Type	Thru-Hole	Surface Mount	Pin ? [in]	Figure Number	Page Number
B1-785-1000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B1-785-1500-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B1-808-1500-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B1-915-1500-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B2-808-3000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B2-915-2000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B2-975-3000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-915-0180-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-940-0200-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-A64-0130-PN0	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-A64-0150-PP0	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-A64-0180-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BH-979-0250-PP0	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BH-979-0300-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
HF-808-010W-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-010W-45C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-4500-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-7500-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-8000-13C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-9000-45C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-975-010W-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-975-4500-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HW-808-010W-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-808-3000-150	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-808-5000-250	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-808-8000-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-010W-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-3000-150	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-5000-250	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-8000-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
M5-785-0080-S50	R100-0403-04N-XXX-R27-L14	75S	265S	.018	4	2
